MR-10 a flexible Modular Reaction Station
A compact multitasking talent
For all Chemical Reaction such as Crystallization, Solubility, Protein Crystallization, Synthesis and Catalytic reactions.
Also in the Petro Chemical and Food Industries, Pharmaceutical and Life Science Environments.
The advanced Modular Reaction Station MR-10
The design was developed for small workspaces in modern laboratory.
The MR-10 offers you the possibility to be efficient and flexible for all your applications, making it a perfect partner for your laboratory!
Up to 10 interchangeable reaction modules
There are up to ten variable and interchangeable reaction modules available, all of which can be controlled independently of one another. Making use time effective.
Temperature selection can be set from -30°C to +150°C with interval settings of 0.2°C.
Depending on your individual reaction requirements, temperature profiles can be programmed. Each position has an individual stirring control with a range of 200 rpm to 2000 rpm.
All settings are made via a touchscreen menu.
In order to be able to monitor the reaction temperature in the solution exactly and precisely, we recommend using our temperature probe, which works optimally with the control software.
The fluid working volume range is between 1ml and 150ml.
The MR-10 can be used with an optional reflux unit and high pressure vessels and can also introduce an inert gas supply in the near future.
It is easy to retest initial results, reproduce them, and expand on those results.
The MR-10 is also very suitable for rapid screening and synthesis reactions under standardized and reproducible conditions.

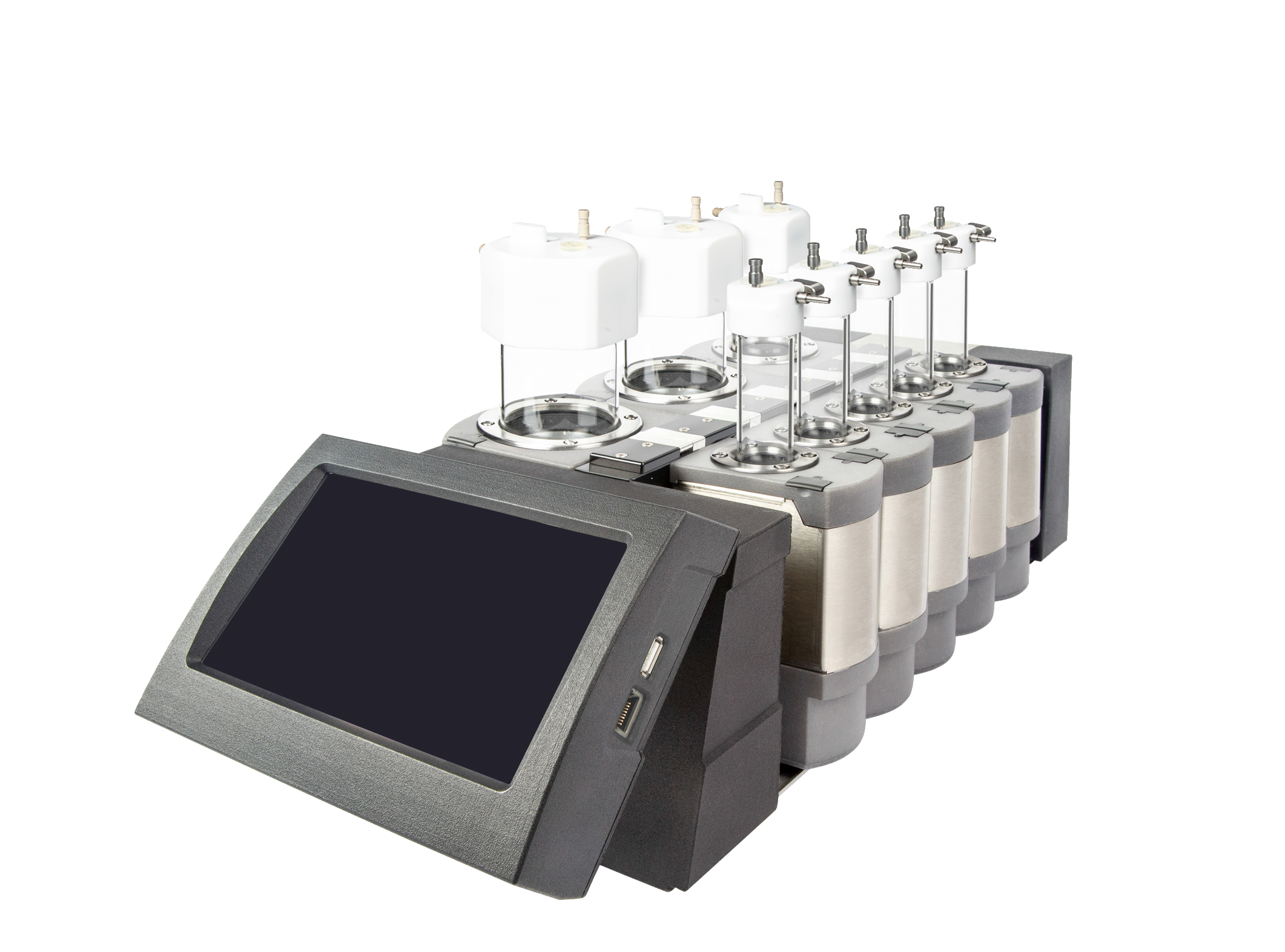

Illustrated is:

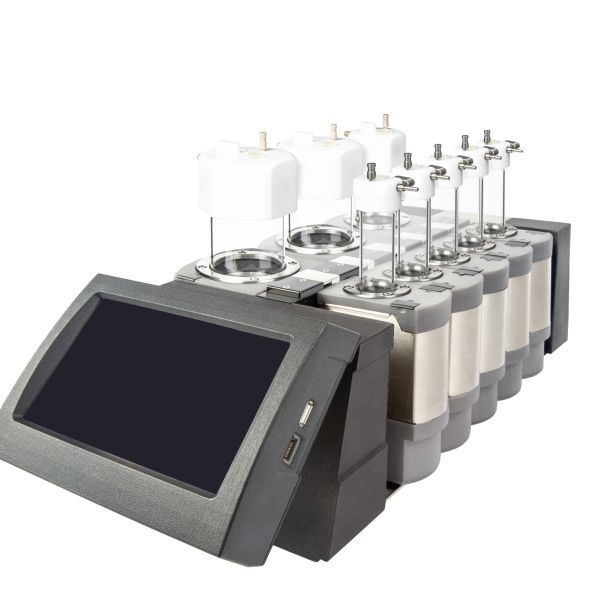

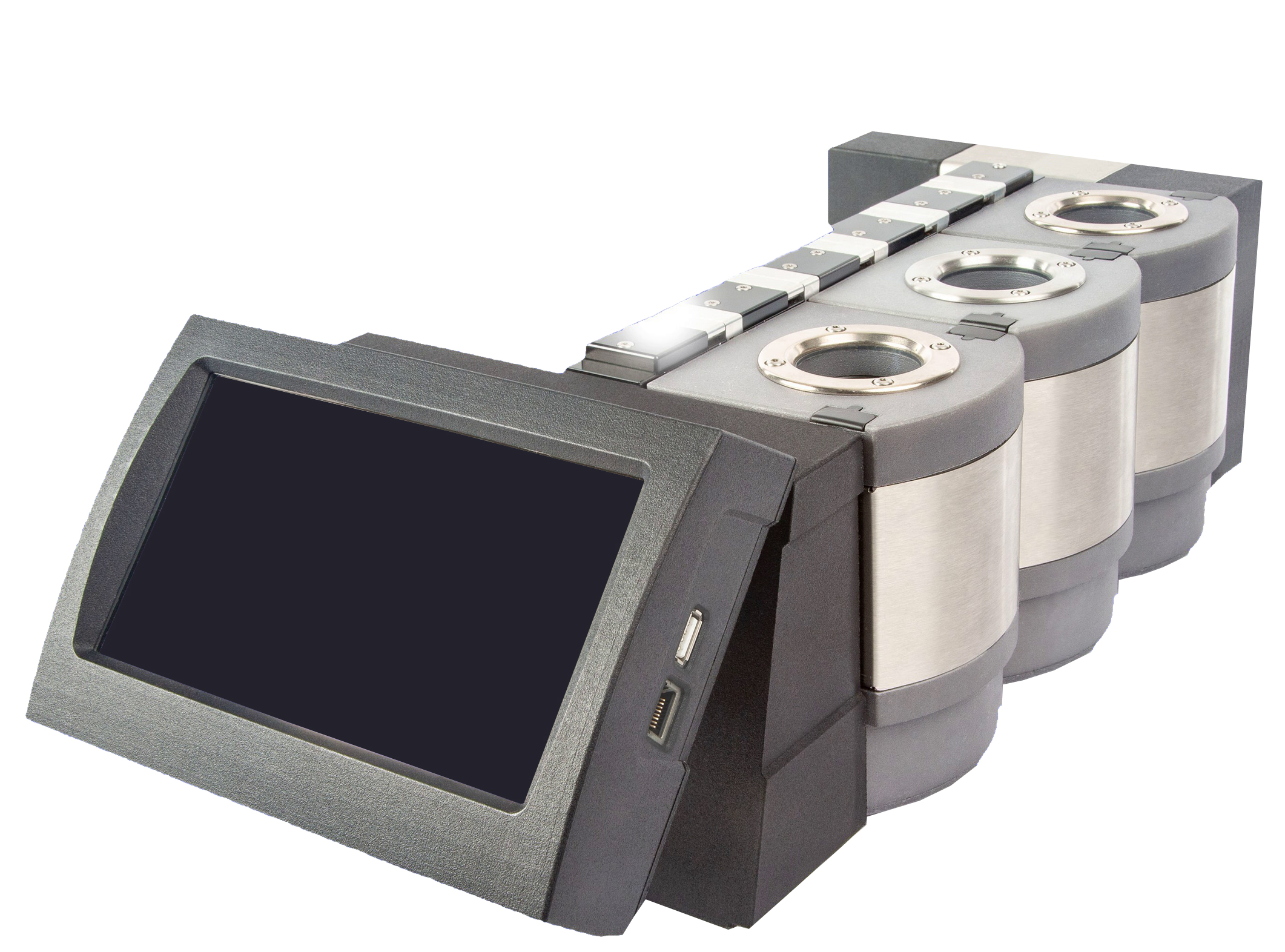

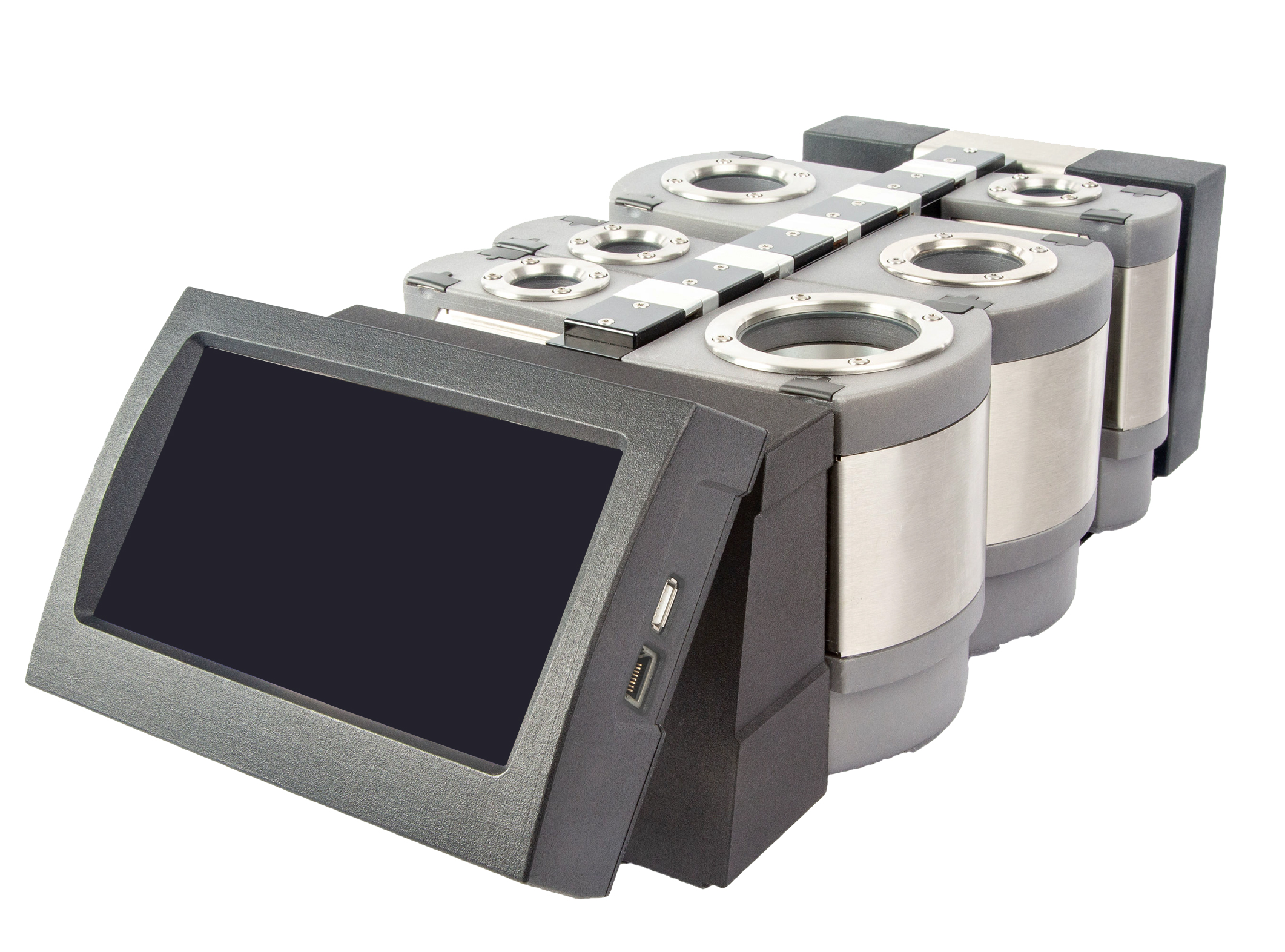

The MR-10 with different sized connected modules.

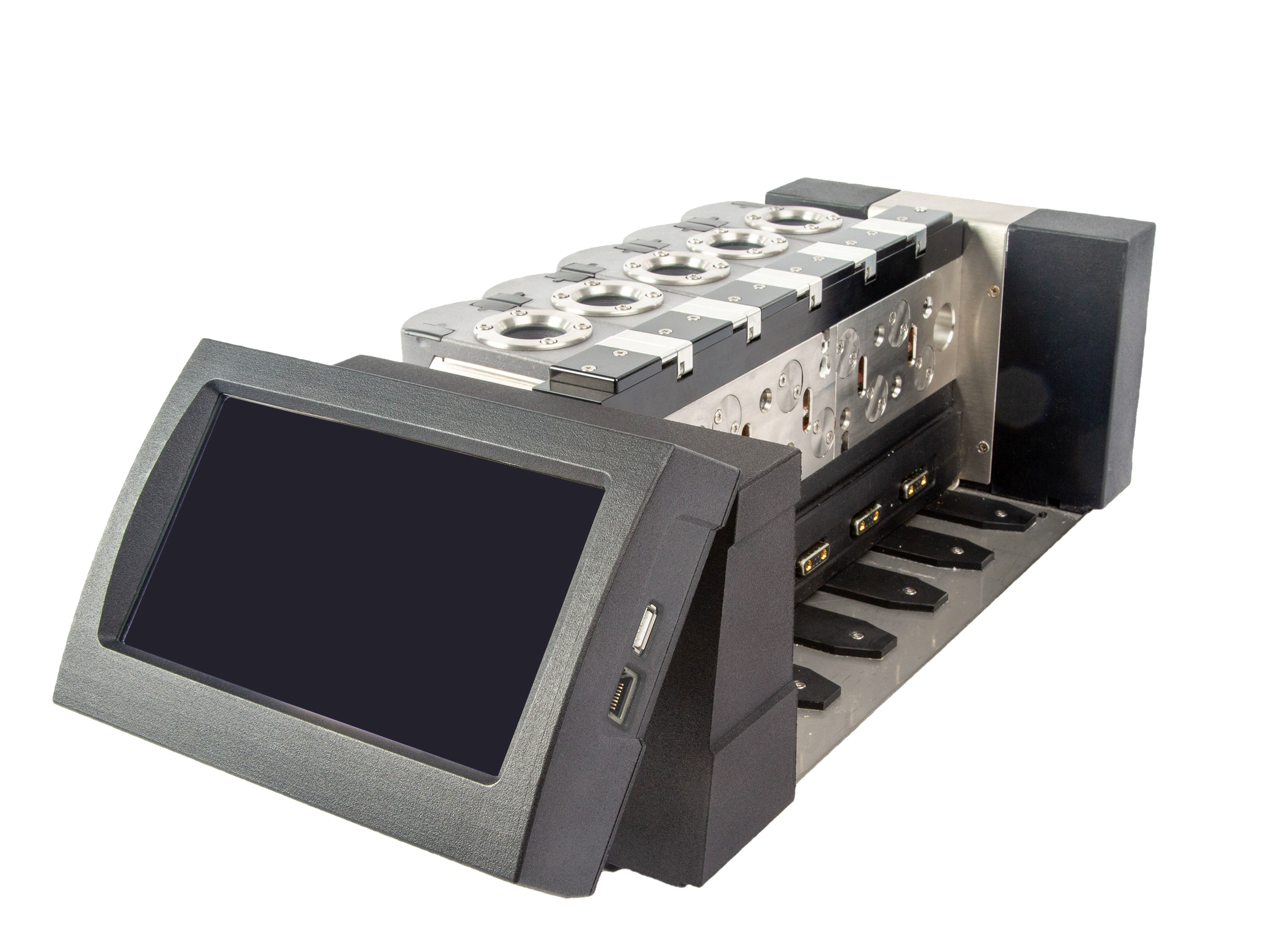

The global PnP standard enables the different modules to operate independently at the same time.
PnP makes it possible to swap modules at any time during operation without affecting the other processes.
Available module sizes:

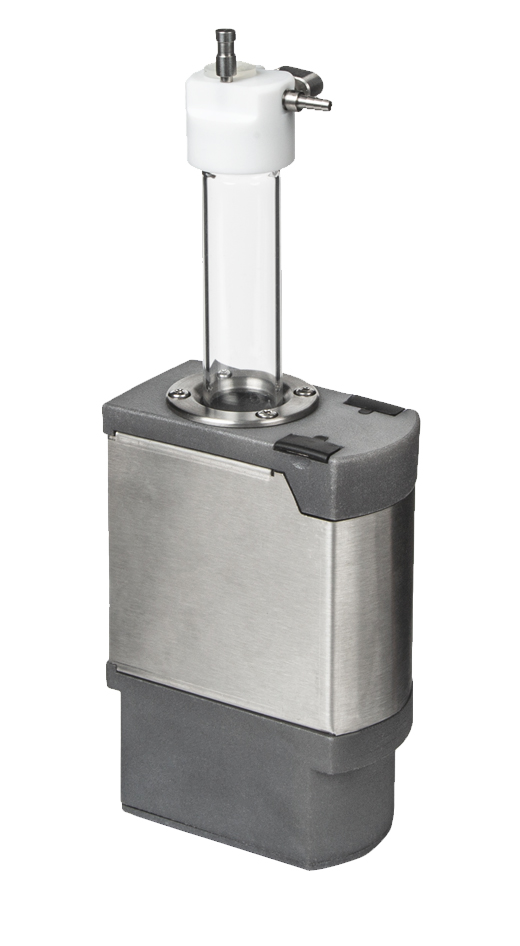

- 25mm

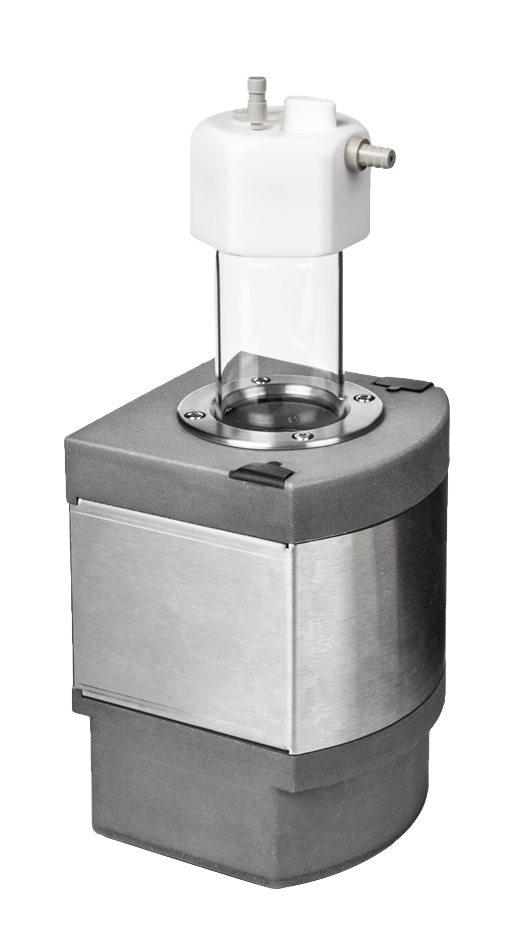

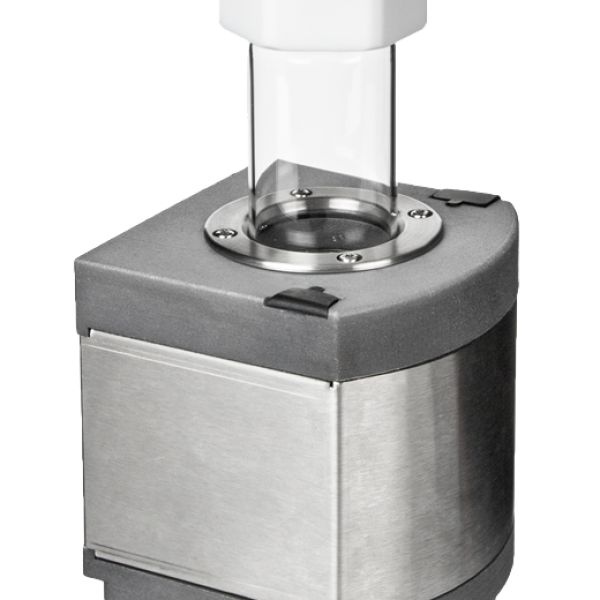

- 44mm

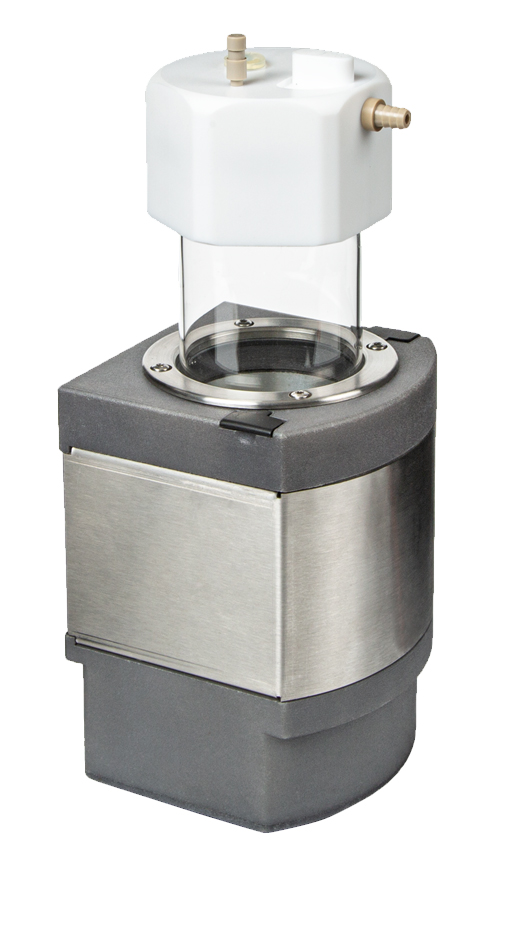

- 58mm
Each module has a unique serial number that allows the software to identify which module is connected to which position, enabling accurate data storage.
